overview
Modern spectrometry designed for seamless integration
High-precision extinction measurement across the full visible spectrum (360–700 nm). No moving parts. Built for direct integration into portable or benchtop analyzers.
Full-range spectrometer (360-700 nm)
Single or multi-channel (up to 3) measurements
Compact hardware, software-integrated
Supports colorimetric, turbidimetric and kinetic assays
How does it work
From light to data

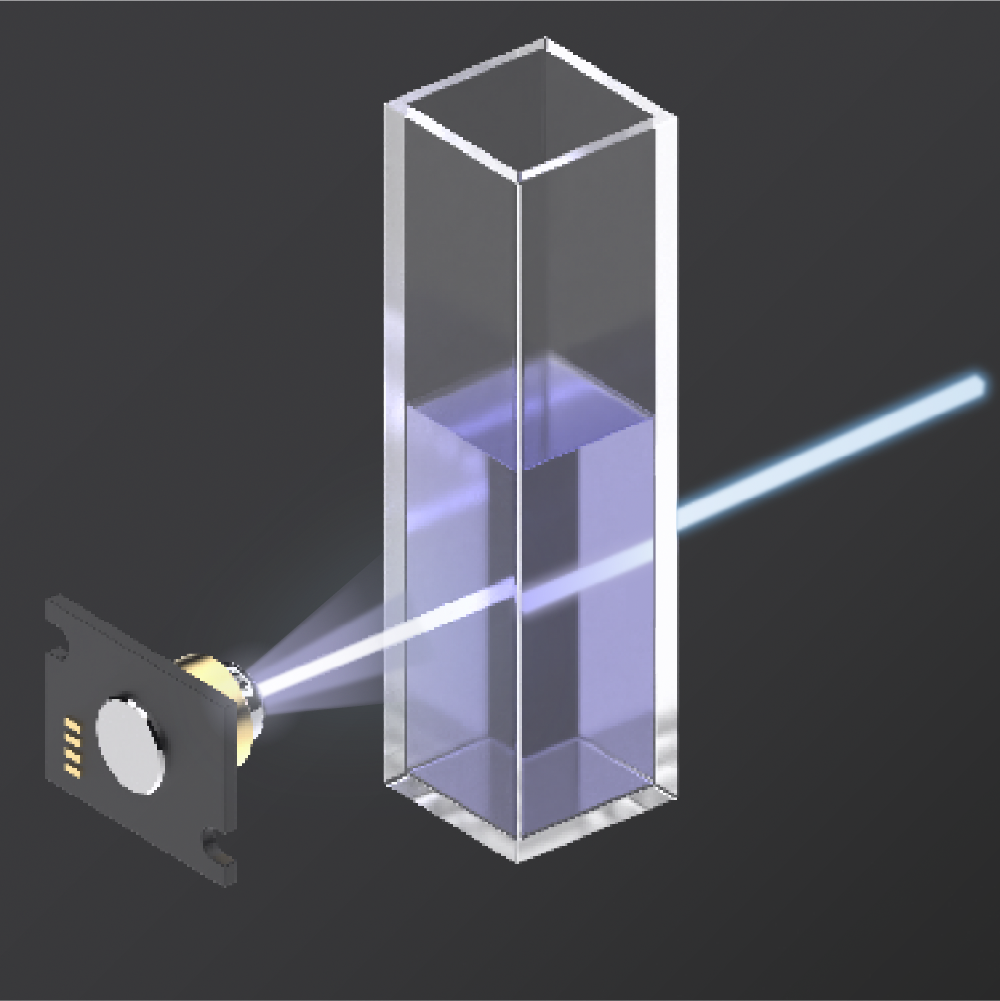

1. Illumination
A broadband light source transmits light through the fluid sample inside the cuvette or sample carrier. The sample absorbs parts of the light at specific wavelengths depending on its composition.

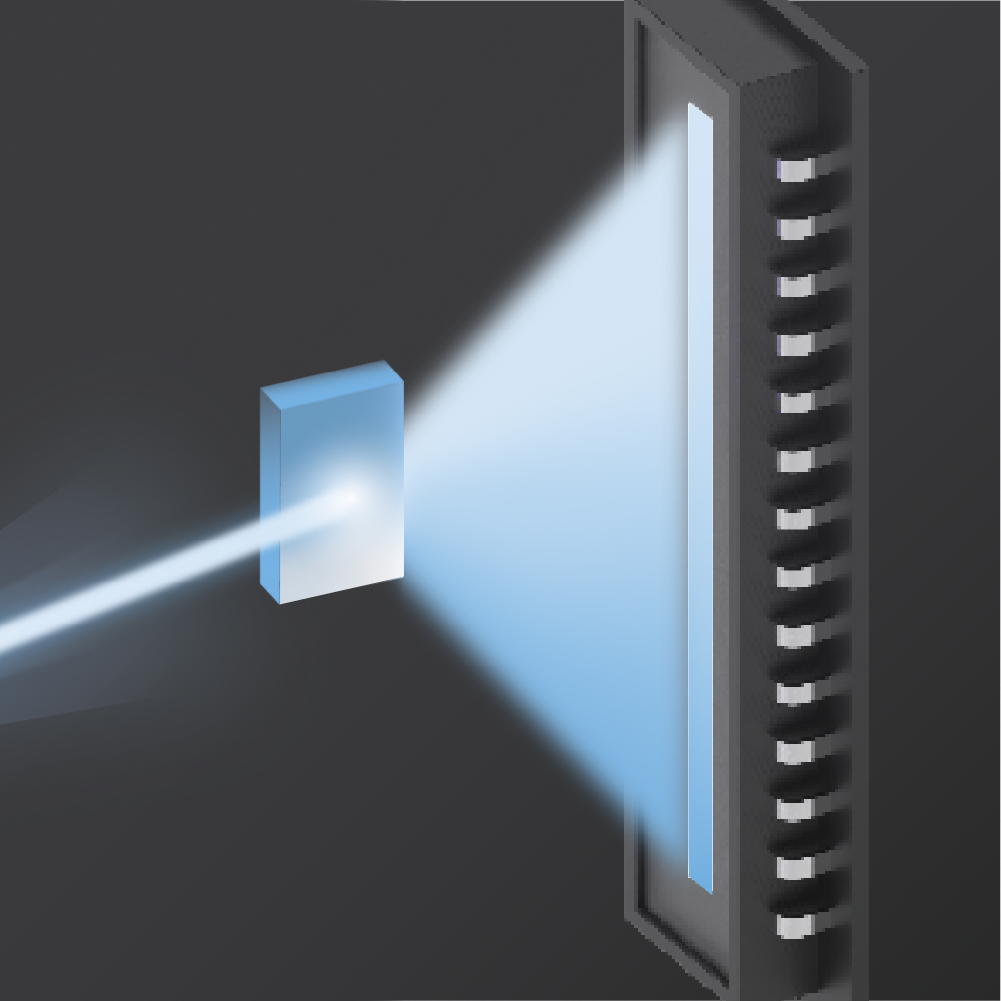

2. Diffraction
The transmitted light passes through a diffraction element that separates it into distinct wavelengths. A lens system ensures accurate delivery to the sensor for precise intensity measurement.

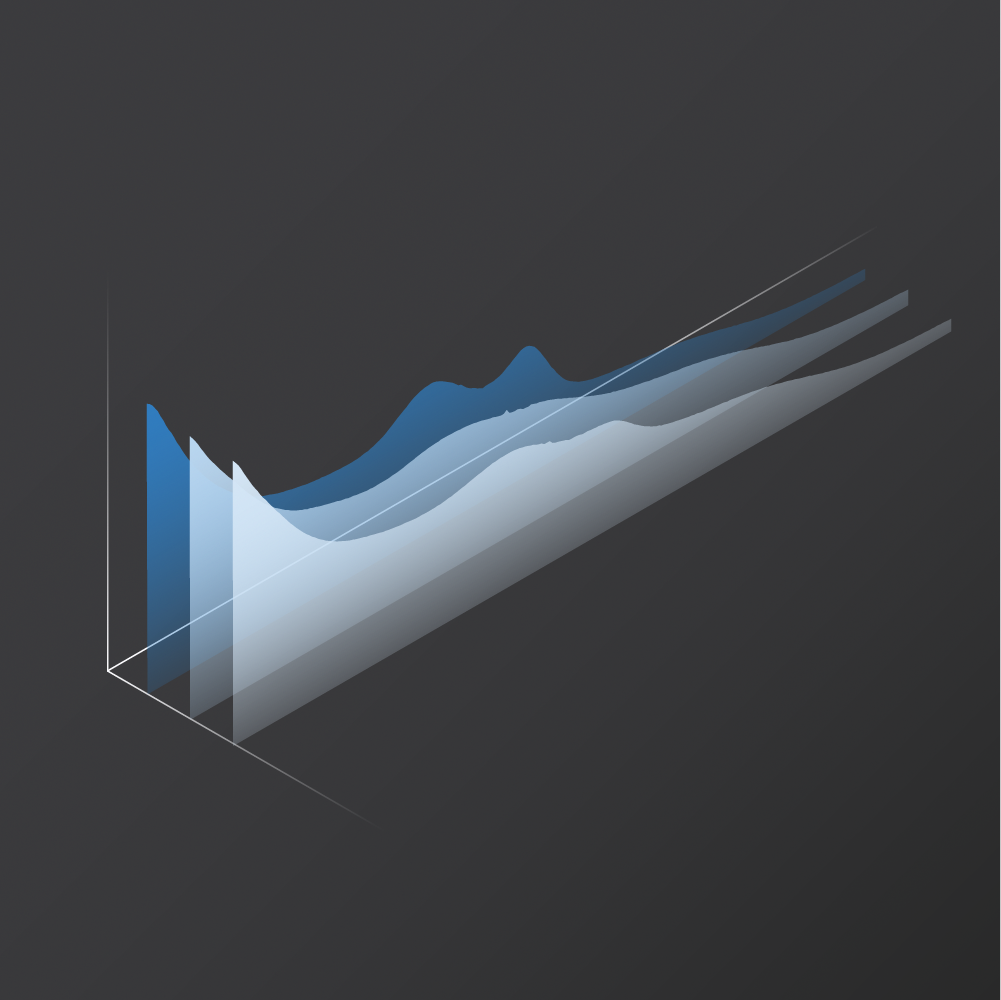

3. Detection
The sensor captures the full spectral data in a single acquisition, enabling precise measurement of extinction and kinetics.
MODULE DESIGN
Spectrometry in a minimal footprint
Our OEM-ready digital holographic microscope module combines pragmatic hardware with powerful software, enabling seamless integration into compact measurement platforms or instruments.

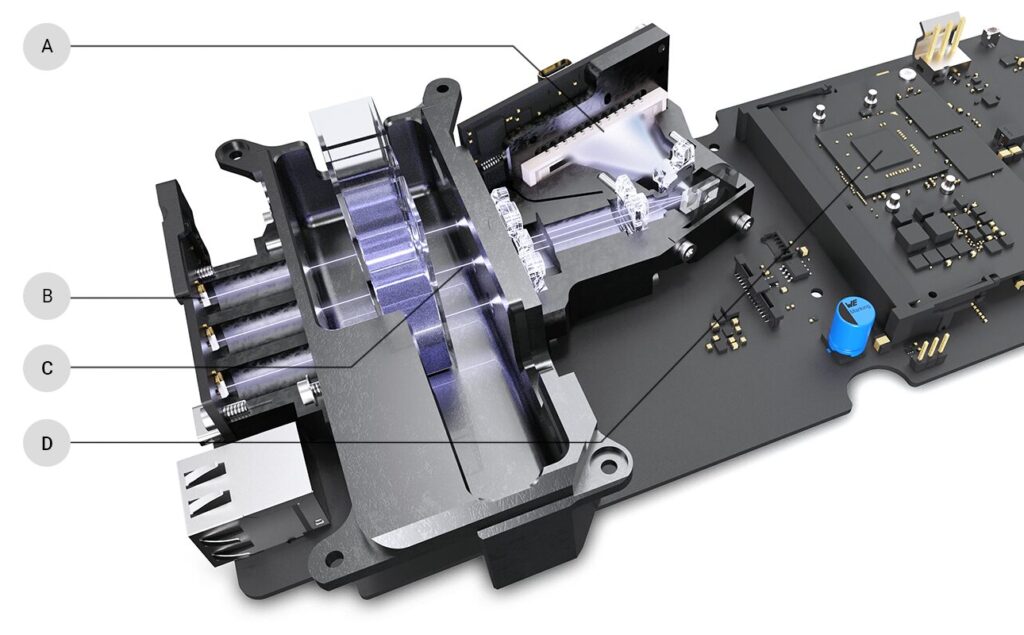

(A) CMOS sensor
Detection across 360–700 nm with high sensitivity
(B) Light source
Stable, broad light spectrum for consistent illumination
(C) Optical Path
Up to 3 measurement channels for multi-sample and multi-parameter detection
(D) Software stack
AI-powered spectral analysis with real-time data output
benefits
High-performance spectrometry without complexity
Key benefits that make our spectrometer module ideal for embedded and portable measurement systems.
| Feature | Advantage |
|---|---|
| Compact build architecture | Easy to embed in handhelds, analyzers or modular systems |
| Cost-efficient design | Minimal components support scalable and affordable production |
| Zero optical alignment needed | Simplifies assembly and reduces maintenance burden |
| Versatile sample interfaces | Compatible with various cuvettes and microfluidic formats |
| Digitally native workflow | Delivers raw and processed data for direct software integration |
applications
Real-world spectrometry across industries
Our compact spectrometry modules are suited for a wide range of research and industrial workflows:
- Research assays: Fast and reproducible colorimetric and kinetic measurements, as established in the fluidlab R-300 for lab-based and portable use
- Point-of-care diagnostics: Integrated into handheld and benchtop analyzers for real-time quantification of fluid parameters at the point of need
- Clinical laboratory settings: Enables detection and monitoring of biomarkers in urine and other body fluids, under evaluation for OEM diagnostic platforms
- Food & beverage quality control: Adaptable for nutrient profiling and detection of contamination in liquid samples during processing and production
- Pharmaceutical development: Supports quantitative assays in formulation development, stability testing and manufacturing quality assurance
- Environmental monitoring: Suitable for absorbance-based analysis of water samples, with potential for soil or runoff testing in field applications
