overview
Cutting-edge veterinary diagnostics
The vet fluidlab 1 utilizes digital dolographic microscopy (DHM) as its core measurement principle, specifically designed for automated urine microscopy measurements. This advanced technology allows for highly accurate and reliable fluid analysis, making it an invaluable tool for veterinary diagnostics.
how does it work
Centrifugation-free analysis
in four simple steps
1. Sample collection
Collect your sample in a sterile manner. Fill in all patient information on your device.
2. Filling
Take a glass slide out of the box. Mix the sample properly and aspire right away to avoid sedimentation. Fill the glass slide completely up to „min“-mark with 20 μL urine.
3. Analysis
Insert the glass slide into the device. The measurement starts automatically. You‘ll receive the result in a few minutes.
4. Result
Scroll down through the result screen to see the results and the microscopic image. Measurements can be saved and additionally transferred to a computer.
insight
Reveal relevant urine sediment
at the point of care
Urine sediment contains valuable diagnostic information. The vet fluidlab 1 automatically detects and classifies key elements, helping veterinarians identify signs of infection, inflammation or crystal-related disorders quickly and clearly.
Each result is supported by high-quality images and AI-assisted classification, giving you reliable insights at the point of care.
Red blood cells

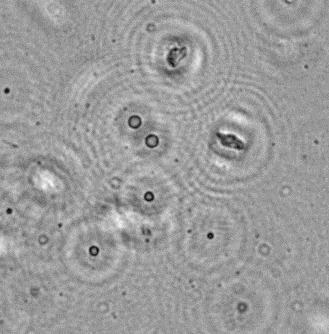

White blood cells
Ephitelial cells
Crystals
Casts
specifications
Technical specifications
| Method | Digital holographic microscopy |
|---|---|
| Sample Centrifugation | No |
| Sample pipetting | Yes |
| Required sample volume | 20µL |
| Analyzed parameters | RBC, WBC Epithelial Cells (Squamous, Non-squamous) Crystals (Calcium Oxalate Dihydrates, Struvites, Unclassified) Casts (Hyaline, Non-Hyaline) Suspected Bacteria Presence |
| Accessories | 20µL pipette comes with the analyzer |
| Consumables | anvajo’s microscopy glass slide (acella) |
| Dimensions | 128 x 94 x 33 mm |
| Weight | 0.24 kg |
OEM relevance
Looking for more information?
Whether you are evaluating point-of-care urine microscopy or exploring integration into your existing workflow, we are here to support your decision-making process.
